Triple Twist Machine
What is the triple twist machine?
Triple Twist Machine (CAT5e–CAT7) — High-speed triple twisting with 0–100% back-twist and servo pitch accuracy to boost throughput and ensure pair uniformity.Pairing of insulated wires for communication cables such as LAN cable (CAT5/CAT5E/CAT6/CAT7), date cable, signal cable, instrumentation cable etc.
Triple Twist Machine Description:
● Torsion free single twist Payoff DIN500

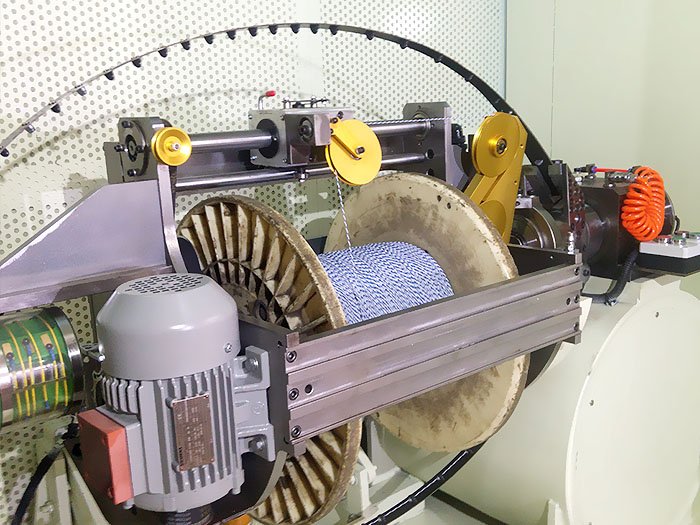

● Double twist takeup DIN500
● PLC control system with color touch screen
SPECIFIC OF PRODUCT
Triple Twist Machine Features:
1. Triple twisting design, 1.5 times speed to traditional double twisting machine when with 33% back twisting rate.
2. Perfect twisting cable quality. Lay length controlled via serve motor, user friendly HMI control, full programmable, accuracy within +/‐2%.
3. Widely use for LAN cable (CAT5/CAT5E/CAT6/CAT7).

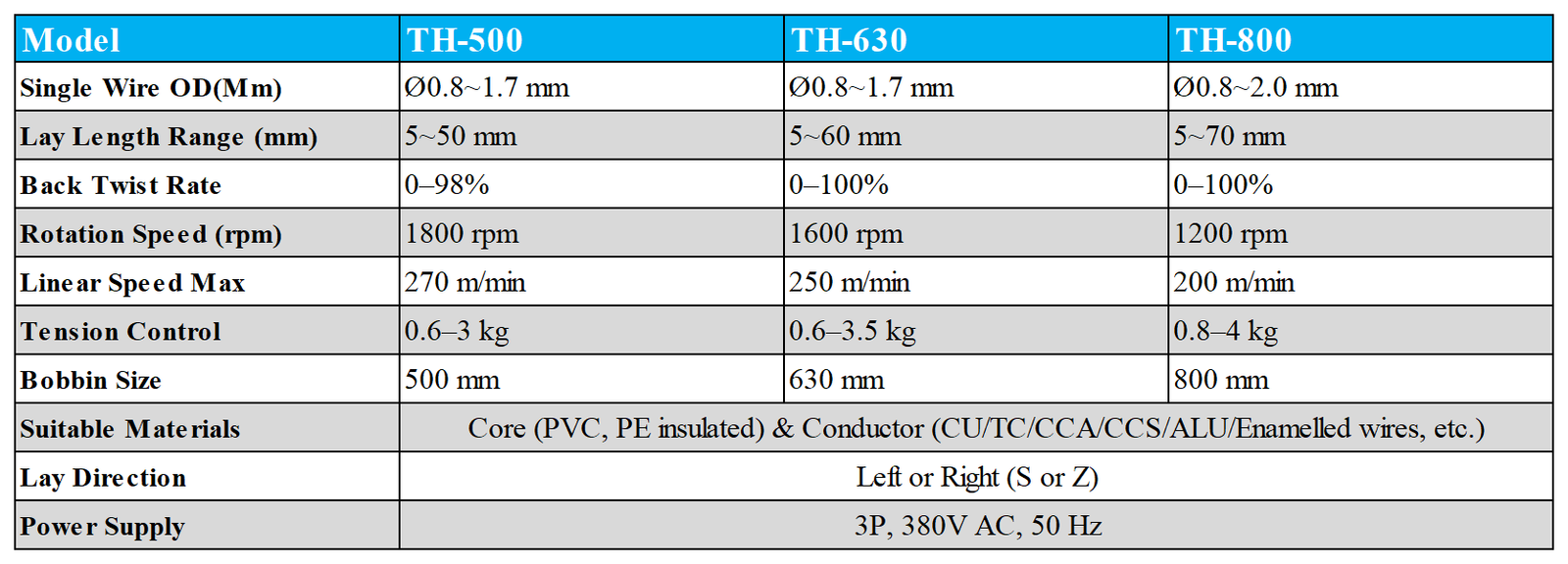

Main technical parameters
