High speed taping machine
What is the taping machine?
Triple Twist Machine (CAT5e–CAT7) — High-speed triple twisting with 0–100% back-twist and servo pitch accuracy to boost throughput and ensure pair uniformity.
According to the material is divided into:
●Copper tape wrapping machine.
●Steel tape armoring machine.
●Non-metallic wrapping machine.
According to the winding method is divided into:
●Tangential type.
●Concentric type.
According to the tension is divided into:
●Hysteresis tension.
●Magnetic powder tension.
SPECIFIC OF PRODUCT
Application for:

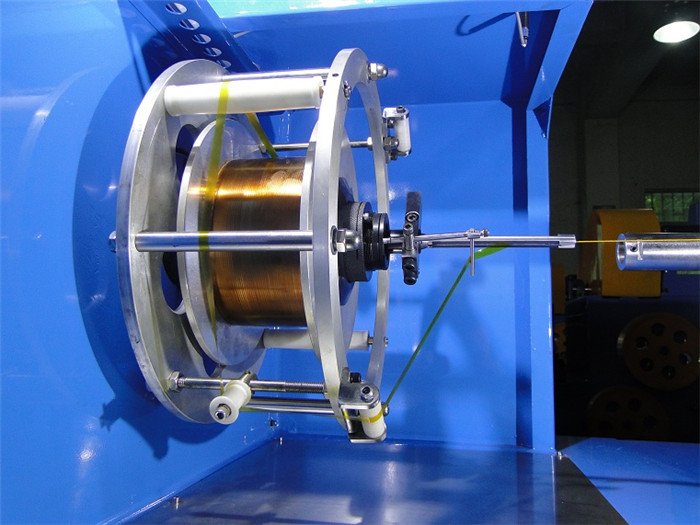

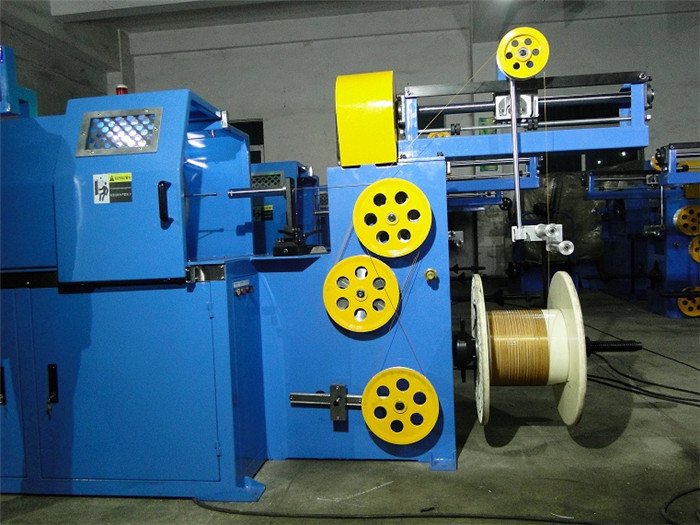

Wire and Cable Taping & Shielding machine is for vertical or horizontal taping process on the conductor surface or cable jacket surface.
It used for such as copper and aluminum foils, textile, paper, mica-glass, mica-polyester, PE, PTFE, polyester, steel tape, metal and non-metal material etc.
Taping head and capstan are driven by independent AC motor.
HMI+PLC control system to pre-setting pitch, tension and speed.
Break and end tape, automatic stop.

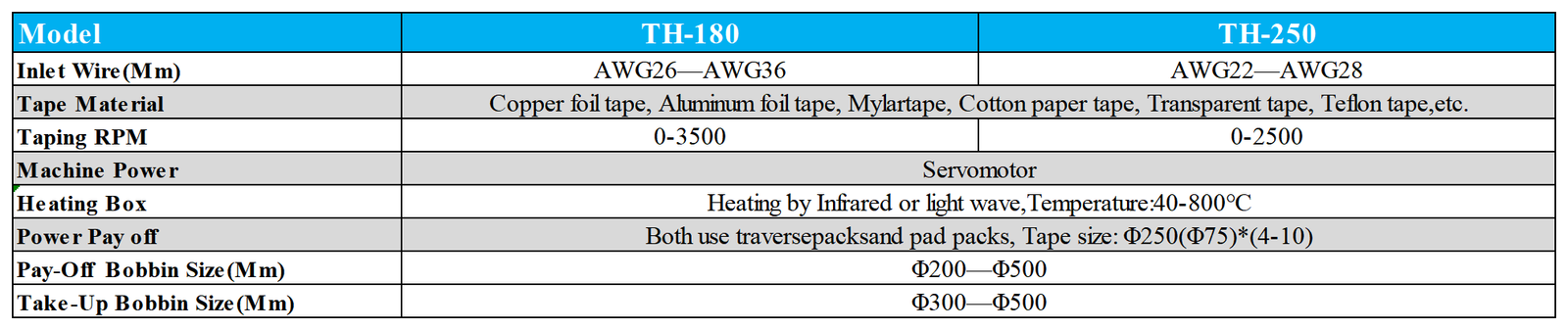

Main technical parameters
